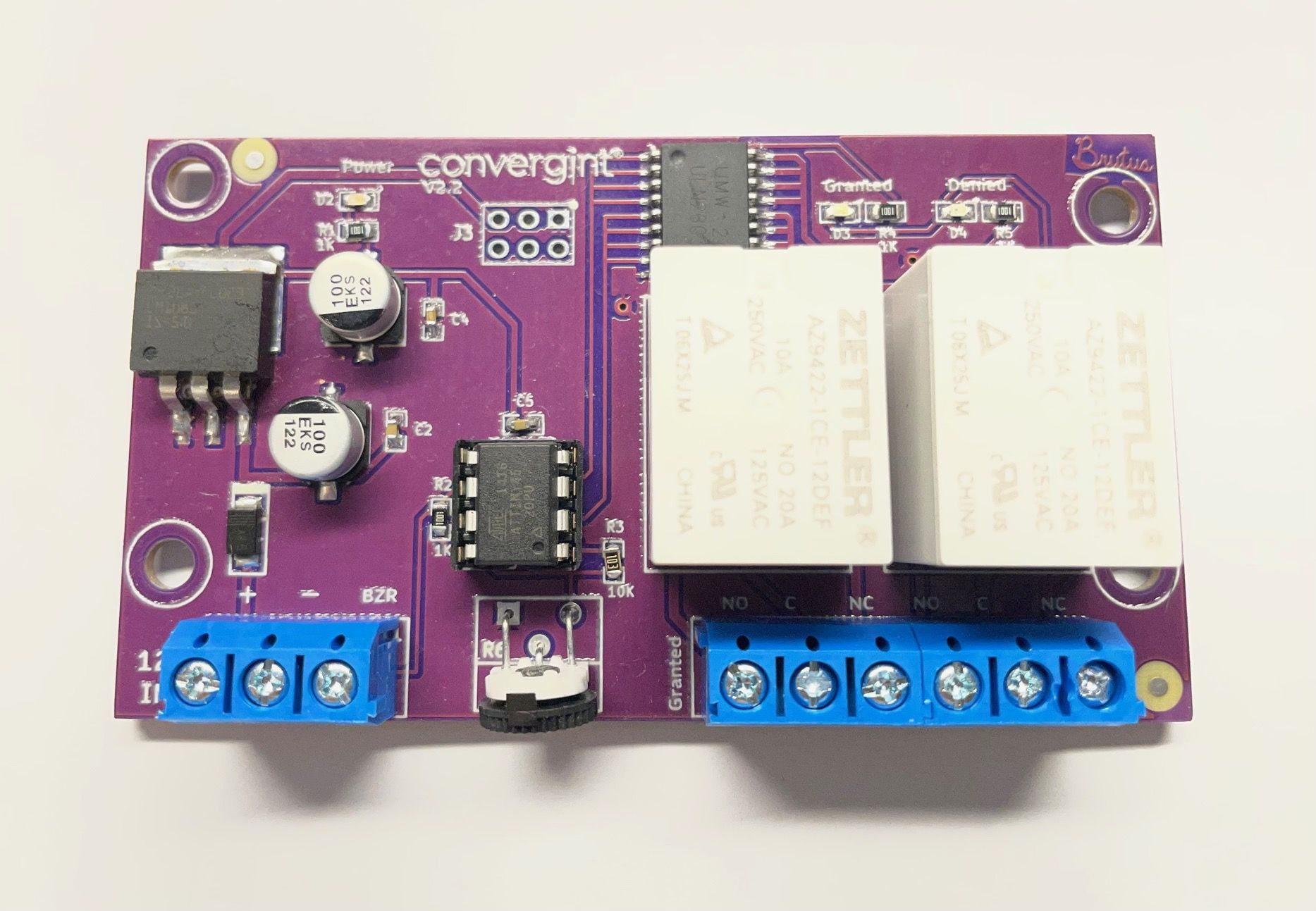

Custom Relay Control Board

The ACLi Access Control Lock Interface is designed to provide a single termination point between access control system wiring and access controlled door devices on either single or double doors and a single credential (card) reader. The Lock Interface unifies access control field device wiring and reduces installation and service times.

In addition to standard six-conductor terminals for a single credential reader, the Lock Interface also provides terminal connectors for
up to two Door Position Sensors (DPS), two Bond Sensors, a Request To Exit (REX) Device, two auxiliary power circuits, and separate lock connections for each door with individual release circuits. The auxiliary and lock circuits are protected by self-resetting
fuses.

Optional features include supervisory resistors for DPS and REX circuits, and surge suppressing diodes or MOV's for DC or AC lock operation. Custom branding, including company name, logo and text is available.
The Lock Interface is a passive device – it does not provide or convert any electrical current, it conducts power from an external system to external devices.
